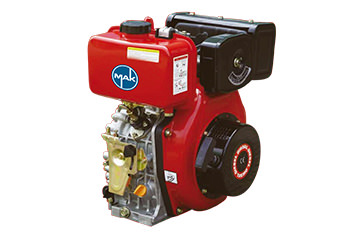

Diesel Engine
- Direct injection combustion system.
- Effecient air cleaner system.
- Compact in structure and small in size.
- Multi-choice PTO shafts are available.
- Recoil start and electric start optional.
| Diesel Engine | ||||||
|---|---|---|---|---|---|---|
| Model | MA170F | MA178F | MA178FA | MA186F | MA186FA | MA188F |
| Bore x Stroke (mm) | 70 x 55 | 78 x 62 | 78 x 64 | 86 x 70 | 86 x 72 | 88 x 78 |
| Displacement (cc) | 211 | 296 | 306 | 406 | 418 | 474 |
| Engine Speed (rpm) | 3000/3600 | |||||
| Maximum Output (hp) | 3.8/4.2 | 5.5/6 | 8.6/10 | 9.0/9.8 | ||
| Continuous Output (hp) | 3.4/3.8 | 5/5.4 | 7.7/8.6 | 10.0/10.9 | ||
| Lube Oil Capacity (L) | 0.75 | 1.11 | 1.65 | 1.65 | ||
| Fuel Tank Capacity (L) | 2.5 | 3.5 | 5.5 | 5.5 | ||
| Dimension (LxWxH) (mm) | 332x392x416 | 383x421x450 | 412x470x494 | 412x470x499 | ||
| Net Weight (recoil) | 27 | 33 | 48 | 53 | ||
